SAFETY CAPS with LEVEL CONTROL


Principles of level sensing

In some cases, you need to use non-translucent canisters to collect solvent waste, so it can be hard to identify if the container reaches its capacity. There is a serious risk of the solvent overfilling, which damages the Exhaust Filter's media and can leak from the canister causing a health risk. We offer various solutions to avoid this situation. One solution is to provide different plastic containers with an integrated level indicator - if the solvent level reaches 80% of the whole volume, a red color indicator will appear indicating that it is time to change the canister. We also offer a mechanical level sensor directly built into the Waste Safety caps (see the figure on the current page). The principle is the same as mentioned before; at 80% volume, a level indicator will appear and alert you to change the container.

DIN45 Waste Caps

With level sensing

Mechanical level sensing
VLC45-M001-TW
    DIN45 Safety Cap with 2 ports with Mechanical Level Sensing
Including 1 x 1/4''-28 fitting for 1/8'' tubing + open port for exhaust filter
VLC45-M002-TW    DIN45 Safety Cap with 3 ports with Mechanical Level Sensing
Including 2 x 1/4''-28 fitting for 1/8'' tubing + open port for exhaust filter
VLC45-M004-TW    DIN45 Safety Cap prep (1/4'') with 2 ports with Mechanical Level Sensing
Including 1 x M10x1 fitting for 1/4'' tubing + open port for exhaust filter
VLC45-M006-TW    DIN45 Safety Cap prep (3/16'') with 2 ports with Mechanical Level Sensing
Including 1 x 5/16''-24 fitting for 3/16'' tubing + open port for exhaust filter
VLC45-M008-TW    DIN45 Safety Cap with 3 ports with Mechanical Level Sensing
Including 1 x 1/4''-28 fitting for 1/8'' tubing, 1 x barbed connector for 5-8mm ID tubing + open port for exhaust filter
VLC45-M009-TW    DIN45 Safety Cap with 3 ports with Mechanical Level Sensing
Including 2 x barbed connector for 5-8mm ID tubing + open port for exhaust filter
VLC45-M011-TW     DIN45 Safety Cap with 2 ports with Mechanical Level Sensing
Including 1 x barbed connector for 5-8mm ID tubing + open port for exhaust filter

Electronic level sensing
VLC45-L009-TW DIN45Safety Cap with 3 ports with Electronic Level Sensing
Including 2 x barbed connector for 5-8mm ID tubing + open port for exhaust filter

DIN50/S50 Waste Caps

With Level Sensing

Mechanical level sensing
VLC50-M008-TW
     S50 Safety Cap with 3 ports with Mechanical Level Sensing
Including 1 x 1/4''-28 fitting for 1/8'' tubing, 1 x barbed connector for 5-8mm ID tubing + open port for exhaust filter
VLC50-M010-TW      S50 Safety Cap with 4 ports with Mechanical Level Sensing
Including 2 x 1/4''-28 fitting for 1/8'' tubing, 1 x barbed connector for 5-8mm ID tubing + open port for exhaust filter
VLC50-M011-TW       S50 Safety Cap with 2 ports with Mechanical Level Sensing
Including 1 x barbed connector for 5-8mm ID tubing + open port for exhaust filter
VLC50-M019-TW      S50 Safety Cap with 3 ports with Mechanical Level Sensing
Including 2 x barbed connector for 5-8mm ID tubing + open port for exhaust filter

DIN60/61 Waste Caps

With level sensing

Mechanical level sensing

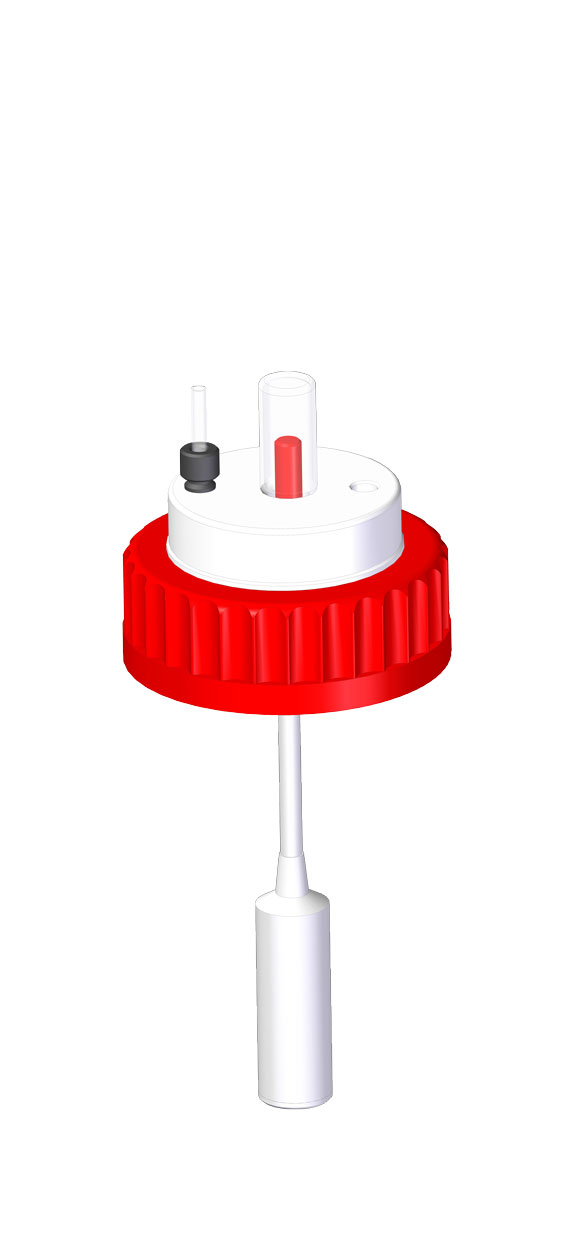

VLC61-M001-TW     DIN60/61 Safety Cap with 2 ports with Mechanical Level Sensing
Including 1 x 1/4''-28 fitting for 1/8'' tubing + open port for exhaust filter
VLC61-M003-TW    DIN60/61 Safety Cap with 4 ports with Mechanical Level Sensing
Including 3 x 1/4''-28 fitting for 1/8'' tubing + open port for exhaust filter
VLC61-M004-TW    DIN60/61 Safety Cap with 2 ports with Mechanical Level Sensing
Including 1 x M10x1 fitting for 1/4'' tubing + open port for exhaust filter
VLC61-M008-TW    DIN60/61 Safety Cap with 3 ports with Mechanical Level Sensing
Including 1 x 1/4''-28 fitting for 1/8'' tubing, 1 x barbed connector for 5-8mm ID tubing + open port for exhaust filter

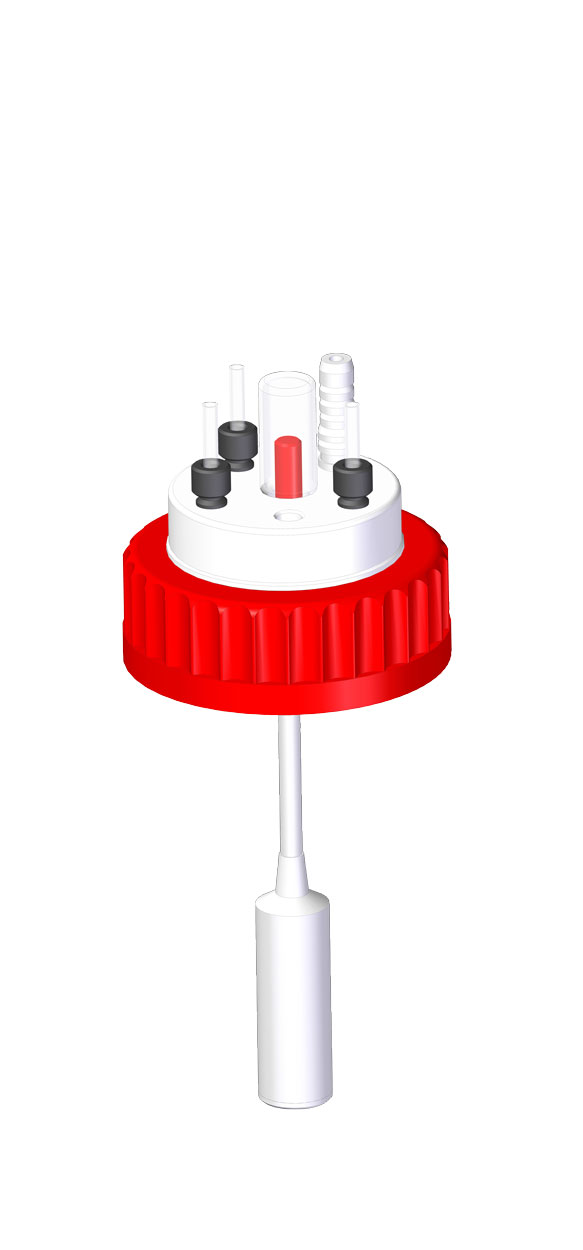

VLC61-M009-TW    DIN60/61 Safety Cap with 5 ports with Mechanical Level Sensing
Including 3 x 1/4''-28 fitting for 1/8'' tubing, 1 x barbed connector for 5-8mm ID tubing + open port for exhaust filter
VLC61-M010-TW     DIN60/61 Safety Cap with 4 ports with Mechanical Level Sensing
Including 2 x 1/4''-28 fitting for 1/8'' tubing, 1 x barbed connector for 5-8mm ID tubing + open port for exhaust filter
VLC61-M011-TW      DIN60/61 Safety Cap with 2 ports with Mechanical Level Sensing
Including 1 x barbed connector for 5-8mm ID tubing + open port for exhaust filter
VLC61-M015-TW     DIN60/61 Safety Cap with 5 ports with Mechanical Level Sensing
Including 4 x 1/4''-28 fitting for 1/8'' tubing + open port for exhaust filter
VLC61-M018-TW     DIN60/61 Safety Cap with 4 ports with Mechanical Level Sensing
Including 3 x barbed connector for 5-8mm ID tubing + open port for exhaust filter
VLC61-M019-TW     DIN60/61 Safety Cap with 3 ports with Mechanical Level Sensing
Including 2 x barbed connector for 5-8mm ID tubing + open port for exhaust filter
VLC61-M022-TW     DIN60/61 Safety Cap with 6 ports with Mechanical Level Sensing
Including 5 x barbed connector for 5-8mm ID tubing + open port for exhaust filter

Electronic level sensing
VLC61-L001-TW
DIN60/61 Safety Cap with 2 ports with Electronic Level Sensing
Including 1 x 1/4''-28 fitting for 1/8'' tubing + open port for exhaust filter
VLC61-L003-TW     DIN60/61 Safety Cap with 4 ports with Electronic Level Sensing
Including 3 x 1/4''-28 fitting for 1/8'' tubing + open port for exhaust filter
VLC61-L004-TW     DIN60/61 Safety Cap with 2 ports with Electronic Level Sensing
Including 1 x M10x1 fitting for 1/4'' tubing + open port for exhaust filter
VLC61-L008-TW     DIN60/61 Safety Cap with 3 ports with Electronic Level Sensing
Including 1 x 1/4''-28 fitting for 1/8'' tubing, 1 x barbed connector for 5-8mm ID tubing + open port for exhaust filter
VLC61-L009-TW     DIN60/61 Safety Cap with 5 ports with Electronic Level Sensing
Including 3 x 1/4''-28 fitting for 1/8'' tubing, 1 x barbed connector for 5-8mm ID tubing + open port for exhaust filter
VLC61-L010-TW      DIN60/61 Safety Cap with 4 ports with Electronic Level Sensing
Including 2 x 1/4''-28 fitting for 1/8'' tubing, 1 x barbed connector for 5-8mm ID tubing + open port for exhaust filter
VLC61-L011-TW       DIN60/61 Safety Cap with 2 ports with Electronic Level Sensing
Including 1 x barbed connector for 5-8mm ID tubing + open port for exhaust filter
VLC61-L018-TW      DIN60/61 Safety Cap with 4 ports with Electronic Level Sensing
Including 3 x barbed connector for 5-8mm ID tubing + open port for exhaust filter
VLC61-L019-TW      DIN60/61 Safety Cap with 3 ports with Electronic Level Sensing
Including 2 x barbed connector for 5-8mm ID tubing + open port for exhaust filter
VLC61-L022-TW      DIN60/61 Safety Cap with 6 ports with Electronic Level Sensing
Including 5 x barbed connector for 5-8mm ID tubing + open port for exhaust filter

ESD DIN60/61 Waste Caps

With level sensing

Mechanical level sensing
VLC61-E001-TW     ESD DIN60/61 Safety Cap with 2 ports with Mechanical Level Sensing
Including 1 x 1/4''-28 fitting for 1/8'' tubing + open port for exhaust filter
VLC61-E002-TW    ESD DIN60/61 Safety Cap with 3 ports with Mechanical Level Sensing
Including 2 x 1/4''-28 fitting for 1/8'' tubing + open port for exhaust filter
VLC61-E003-TW    ESD DIN60/61 Safety Cap with 4 ports with Mechanical Level Sensing
Including 3 x 1/4''-28 fitting for 1/8'' tubing + open port for exhaust filter
VLC61-E004-TW    ESD DIN60/61 Safety Cap with 2 ports with Mechanical Level Sensing
Including 1 x M10x1 fitting for 1/4'' tubing + open port for exhaust filter
VLC61-E005-TW    ESD DIN60/61 Safety Cap with 3 ports with Mechanical Level Sensing
Including 2 x M10x1 fitting for 1/4'' tubing + open port for exhaust filter
VLC61-E008-TW    ESD DIN60/61 Safety Cap with 3 ports with Mechanical Level Sensing
Including 1 x 1/4''-28 fitting for 1/8'' tubing, 1 x barbed connector for 5-8mm ID tubing + open port for exhaust filter
VLC61-E009-TW    ESD DIN60/61 Safety Cap with 5 ports with Mechanical Level Sensing
Including 3 x 1/4''-28 fitting for 1/8'' tubing, 1 x barbed connector for 5-8mm ID tubing + open port for exhaust filter
VLC61-E010-TW    ESD DIN60/61 Safety Cap with 4 ports with Mechanical Level Sensing
Including 2 x 1/4''-28 fitting for 1/8'' tubing, 1 x barbed connector for 5-8mm ID tubing + open port for exhaust filter
VLC61-E011-TW     ESD DIN60/61 Safety Cap with 2 ports with Mechanical Level Sensing
Including 1 x barbed connector for 5-8mm ID tubing + open port for exhaust filter
VLC61-E015-TW    ESD DIN60/61 Safety Cap with 5 ports with Mechanical Level Sensing
Including 4 x 1/4''-28 fitting for 1/8'' tubing + open port for exhaust filter
VLC61-E018-TW    ESD DIN60/61 Safety Cap with 4 ports with Mechanical Level Sensing
Including 3 x barbed connector for 5-8mm ID tubing + open port for exhaust filter
VLC61-E019-TW    ESD DIN60/61 Safety Cap with 3 ports with Mechanical Level Sensing
Including 2 x barbed connector for 5-8mm ID tubing + open port for exhaust filter
VLC61-E022-TW    ESD DIN60/61 Safety Cap with 6 ports with Mechanical Level Sensing
Including 5 x barbed connector for 5-8mm ID tubing + open port for exhaust filter

Electronic level sensing
VLC61-C001-TW     ESD DIN60/61 Safety Cap with 2 ports with Electronic Level Sensing
Including 1 x 1/4''-28 fitting for 1/8'' tubing + open port for exhaust filter
VLC61-C003-TW     ESD DIN60/61 Safety Cap with 4 ports with Electronic Level Sensing
Including 3 x 1/4''-28 fitting for 1/8'' tubing + open port for exhaust filter
VLC61-C004-TW     ESD DIN60/61 Safety Cap with 2 ports with Electronic Level Sensing
Including 1 x M10x1 fitting for 1/4'' tubing + open port for exhaust filter
VLC61-C008-TW     ESD DIN60/61 Safety Cap with 3 ports with Electronic Level Sensing
Including 1 x 1/4''-28 fitting for 1/8'' tubing, 1 x barbed connector for 5-8mm ID tubing + open port for exhaust filter
VLC61-C009-TW     ESD DIN60/61 Safety Cap with 5 ports with Electronic Level Sensing
Including 3 x 1/4''-28 fitting for 1/8'' tubing, 1 x barbed connector for 5-8mm ID tubing + open port for exhaust filter
VLC61-C010-TW      ESD DIN60/61 Safety Cap with 4 ports with Electronic Level Sensing
Including 2 x 1/4''-28 fitting for 1/8'' tubing, 1 x barbed connector for 5-8mm ID tubing + open port for exhaust filter
VLC61-C011-TW       ESD DIN60/61 Safety Cap with 2 ports with Electronic Level Sensing
Including 1 x barbed connector for 5-8mm ID tubing + open port for exhaust filter
VLC61-C018-TW      ESD DIN60/61 Safety Cap with 4 ports with Electronic Level Sensing
Including 3 x barbed connector for 5-8mm ID tubing + open port for exhaust filter
VLC61-C019-TW      ESD DIN60/61 Safety Cap with 3 ports with Electronic Level Sensing
Including 2 x barbed connector for 5-8mm ID tubing + open port for exhaust filter

Accessories for Level sensing products

VLL-A03      Signal cable 3m length
VLL-A05      Signal cable 5m length
VLL-L01       Control Panel for Vision Safety caps with Electronic Level Sensing With 1 channel
